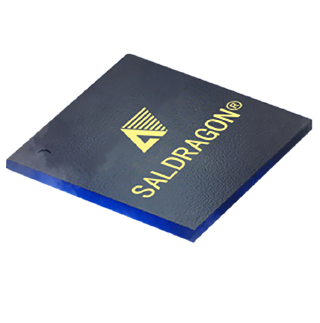

SALDRAGON 1

工业化操控、器机视野、资源供电、汽車電子

产品简介

安路科枝SALDRAGON 1（之下俗称 DR1）类别元器件封装继续安路FPSoC网络家族，搭配组合了硬核加工器机体统和FPGA，能够高网络带宽传输线参与三者的网络。多核 ARM/RISC-V 加工器机体统与安路FPGA可编写程序语言表达相构建于一个电子器件中，保证了运用类ARM/RISC-V加工器的功效与生态资源机体统，以及符合安路FPGA的灵抗逆性高性、低功率、可括展 SoC的平台。ARM/RISC-V CPU是加工器机体统的管理的本质，另外机体统还带有on-chip RAM，内存条接头和多样的外设网络接头，定位系统的麻烦添加式机体统、低功率和高功效电子器件市面。

联系购买

产品选型表

显示6种产品

Device	Processor Core	Processor Extensions	Maximum Frequency（MHz）	Cache/TCM	On-Chip RAM	SDRAM	Peripherals	Peripherals w/built-in DMA	PS-PL Interface Ports	DMA Channels	JPU	NPU	TIMER	PS IO2	External Static Memory Support	LUTs	DFFs	DistributeRAM	eRAM-20K	eRAM-Total	DSP	PLL	TS	ADC	MIPI DPHY-RX	MAX user IO
DR1M90MEG484	双核 ARM 处理器	NEON & Single / Double Precision Floating Point for each processor	1000	L1:32 KB Instruction,32 KB data per processor ; L2:512 KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，AXI 64-bit ACP，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	ARM 通用定时器，系统级 Triple-timer 计数器, 看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	2	195
DR1M90GEG484	双核 ARM 处理器	NEON & Single / Double Precision Floating Point for each processor	1000	L1:32 KB Instruction,32 KB data per processor ; L2:512 KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，AXI 64-bit ACP，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	ARM 通用定时器，系统级 Triple-timer 计数器, 看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	-	201
DR1V90MEG484	单核 RISC-V 处理器	P/F/D Instruction Extension	800	L1:32 KB Instruction,32 KB data per processor ITCM：256KB DTCM1：256KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，32-bit AHB，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	RISC-V 定时器，系统级 Triple-timer 计数器，看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	2	195
DR1V90GEG484	单核 RISC-V 处理器	P/F/D Instruction Extension	800	L1:32 KB Instruction,32 KB data per processor ITCM：256KB DTCM1：256KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，32-bit AHB，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	RISC-V 定时器，系统级 Triple-timer 计数器，看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	-	201
DR1V90GEG400	单核 RISC-V 处理器	P/F/D Instruction Extension	800	L1:32 KB Instruction,32 KB data per processor ITCM：256KB DTCM1：256KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，32-bit AHB，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	RISC-V 定时器，系统级 Triple-timer 计数器，看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	-	126
DR1M90GEG400	双核 ARM 处理器	NEON & Single / Double Precision Floating Point for each processor	1000	L1:32 KB Instruction,32 KB data per processor ; L2:512 KB	256KB	16/32-bit DDR3/DDR3L	UART,CAN 2.0B/FD,I2C,SPI,GPIO	USB 2.0Tri-mode Gigabit Ethernet，SD4.2/SDIO/eMMC5.1 控制器	AXI 32-bit Master，AXI 32-bit Slave，AXI 64-bit/32-bit Memory(HP)，AXI 64-bit ACP，16 Interrupts	8(4 dedicated to Programmable Logic)	JPEG baseline encoder/decoder	512x MAC,0.4TOPs,256KB SRAM	ARM 通用定时器，系统级 Triple-timer 计数器, 看门狗定时器	54	Quad-SPI，NAND	94464	104960	1340	280	5600	240	8	2	1	-	126
